Technical specifications

Weight:	26.50 kg
EUROLITE AKKU IP Pixel Tube 360° PRO CRMX
Power supply:	100-240 V AC, 50/60 Hz 13V DC 3000 mA
IP classification:	IP65
Protection class:	Protection class III

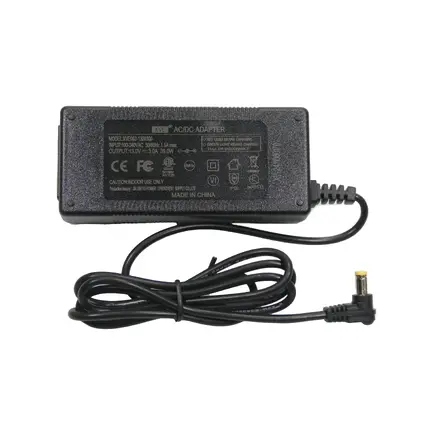

Power connection:	Mains input via coaxial power connector (M) power supply cord with AC unit (provided) Battery/battery pack
Cable construction:	2 x 0.75 mm² H03VVH2-F

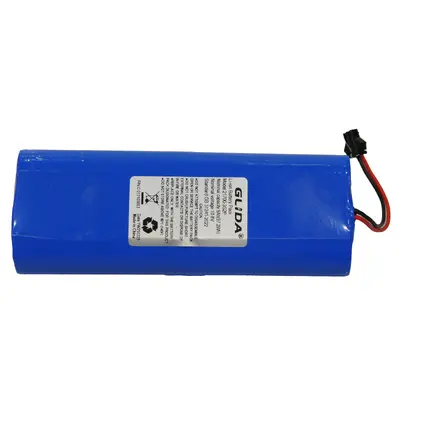

Battery pack type:	1 x lithium ion 10.8 V, 9000 mAh, 97.2 Wh
Battery pack:	Battery operation up to 8.5h depending on program used Recharging time 4h
Lamp type:	LED lamp
LED type:	144 x 0.5 W SMD 5050 5in1 PCL RGB/CW/WW (homogenous color mix)
Flash rate:	2 - 20 Hz
DMX channels:	4; 5; 7; 14; 16; 20.1; 20.2; 22.1; 22.2; 24.1; 24.2; 120; 124
Cooling:	Passive convection cooling
Control:	Stand-alone; IR remote control; CRMX by LumenRadio
Fixtures available for:	Light Captain; Colorchief
Projection:	Flicker-free
PWM frequency:	12600 Hz
Carrier frequency:	2.4 GHz
Modulation:	GFSK
DMX fail mode:	Hold; blackout; static; full on
Beam angle:	360°
Beam angle (1/2 peak):	360°
Beam angle (1/10 peak):	360°
Color rendering index (CRI):	84 Ra
Housing color:	Black matte

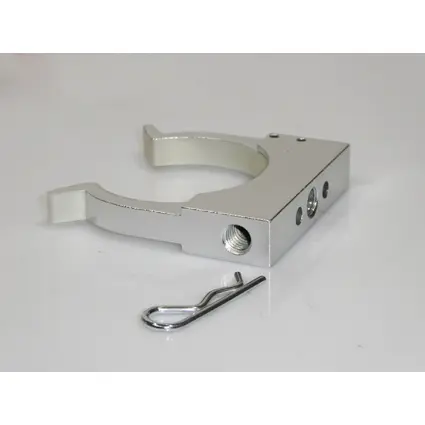

Attachment system:	2x holding clip M10 thread
Display type:	Monochrome OLED display
Display:	Charge status indicator , battery runtime calculation
Material:	Plastic; aluminum
Theft protection:	KENSINGTON LOCK
Dimensions:	Length: 109 cm Width: 7.0 cm Depth: 7.0 cm
Weight:	2.80 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x button cell 3.0 V CR2032 lithium manganese built-in
ROADINGER Plastic Case for 4x AKKU IP Pixel Tube 360° CRMX
Maximum load:	50 kg
Case handle:	3 pc/pcs
Lock:	Spring lock: 8 pc/pcs with shut-off function
Transport aid:	Trolley
Material:	Plastic
Color:	Black
Device compartment:	109 cm x 8 cm x 7.5 cm
Middle compartment:	50 cm x 42 cm x 8 cm
Dimensions:	Length: 117.5 cm Depth: 52 cm Height: 21 cm
Weight:	11.40 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397748147	28,00 kg

Spare parts

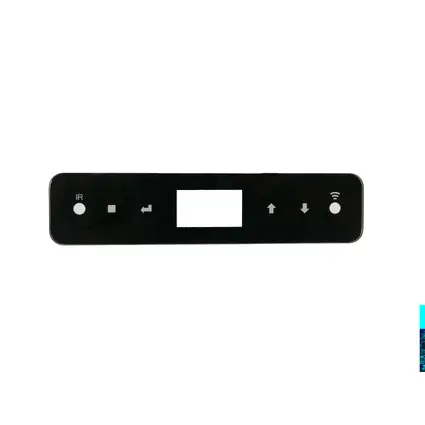

Pcb (Display/Control) AKKU IP Pixel Tube 360° PRO CRMX (ASMPCB030)

Pcb (LED1) AKKU IP Pixel Tube 360° PRO CRMX (132700PCBA1)

Pcb (LED2) AKKU IP Pixel Tube 360° PRO CRMX (132700PCBA2)

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20001042-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/gPYuTdUnZPQ

EUROLITE Set 4x AKKU IP Pixel Tube 360° PRO CRMX + Plastic case

Stock for approx. 12 wk(s)

2.499,00 €

Find a dealer

Stock for approx. 12 wk(s)

Due to the dimensions of this article, different shipping conditions apply.

List price excl. 19% VAT
Prices in retail stores may vary.

No. 20001042

360°

Set consisting of:

4 x EUROLITE AKKU IP Pixel Tube 360° PRO CRMX

1 x ROADINGER Plastic Case for 4x AKKU IP Pixel Tube 360° CRMX

EUROLITE AKKU IP Pixel Tube 360° PRO CRMX

Battery-powered IP pixel tube with RGB/CW/WW color mixing, 360° beam angle and CRMX receiver

Integrated wireless receiver for CRMX operation
Cordless, flexible and versatile
Battery operation up to 8.5h depending on program used
Integrated automatic charging of the battery and status indicator
144 LEDs 0.5 W SMD 5050 5in1 PCL RGB/CW/WW (homogenous color mix)
24 segments controlled separately
Dimmer electronic; Dimmer speed (step response) adjustable; color blend adjustable; color macros preset; white balance adjustable; program selection manual; color animations with two adjustable colors; Emergency lighting function in case of power failure adjustable; Energy-saving mode
53 integrated show programs
Direct color selection for 37 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; IR remote control; CRMX by LumenRadio
Fixtures available for Light Captain; Colorchief
Flicker-free
DMX fail mode (hold; blackout; static; full on)
With a beam angle of 360°
Good color rendering index (CRI)
With holding clip
Monochrome OLED display
Charge status indicator
Display of the remaining battery life for the current setting
Suitable for outdoor use IP65
With pressure compensation membrane
With a KENSINGTON LOCK theft protection
For application areas such as: Architecture; stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; rental; video and photography; advertisement/Shop window
Application possibility: Standing; suspended
Silent operation
3 buttons on the remote control for saving your own settings
